Printed Transformer Type Microphone

In the first part of the course we explored the possibility of a transformer based microphone, involving printed coil structures on paper. Unfortunately the printed structures have shown a large resistance, making them unsuitable for inducing magnetic field. This is because the strength of the magnetic field is proportional to the amount of current flowing through the coil, which, in turn, is limited by the resistance of the coil. It was found, that by using our printed inkjet techniques, the resistance of coils was too large by approximately two orders of magnitude. Goal: 4-20 Ohms, Actual circuits: 500-1000 Ohms. You can find the explored circuits below

transformer microphone and 555 timer oscillator (outdated circuits)

Printed Capacitive (Condenser) Microphone

However, the circuits where still capable of sensing vibrations, because of another effect that was not anticipated, but stronger in the actual circuit: The capacitive effect of the two opposing coils. This capacitive effect can be made larger by providing a bigger overlapping area of the two conductors that form the microphonic surface. That simplified our print designs a little, because we were not forced to print coils as two port devices, but could use two rectangular shapes with a single port each. Leading to lesser connections and no jumper wires on our paper printed microphones.

Our actual designs are sender-receiver type circuits, utilizing the radio frequency signal transmission as a means to get rid of mains hum and other interferences. At the same time, this provides the flexibility to detect different frequencies with a single receiving circuit.


TL072 Version

TL074 Version

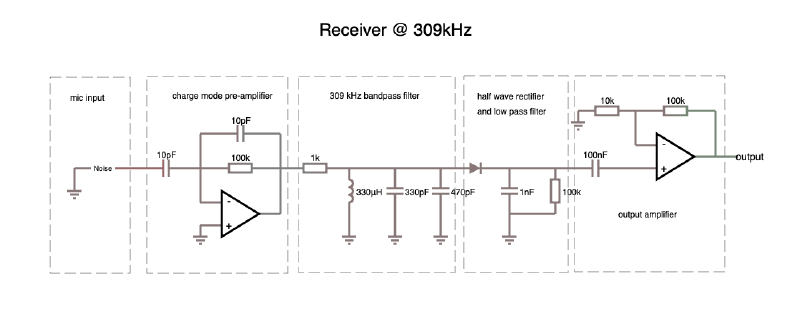

Receiving Circuit

Charge Mode Amplifier for Capacitive Microphone

275kHz Receiver

309 kHz Receiver
