Miroscopy stage construction

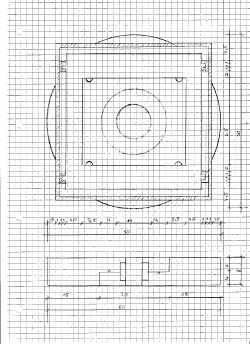

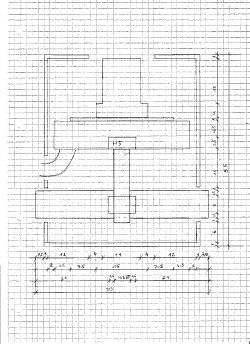

The scale is 3:1 and on the first page you can see the microscope from the front. On the second page there is the view from above and an idea how I can put the big wheel into the box. In the scetch from above are just the details drawn which where important for me.
3D Model
Media:Manuel Janke 3D Sketch Up Model.zip
You will need SketchUp to have a look at the file.
Images
I went to the Kirschbachtal and there I collected some materials.
Video
For some moving images I bought living fish food. short examples: <videoflash type="vimeo">54240289|640|480</videoflash>
How it can look in the end
<videoflash type="vimeo">55218927|640|480</videoflash>
Documentation
This is the full documentation of the finished microscope.
Artistic approach
Here you can click through an interactive photo. If you have a dropbox account just add the whole folder and search for the Manuel_Janke_microscopy_website.html. If you don't have your own dropbox please download the folder and start the Manuel_Janke_microscopy_website.html from your local harddrive.
(Google Chrome or Mozilla Firefox recommended)
If there are questions or problems with the dropbox-link contact me at: manuel.janke [at] uni-weimar.de
